Industrial PC is designed, manufactured and fully supported in the Czech Republic, EU.
At 3.15 kg, the machined all-aluminum enclosure gives the device a distinctive industrial look and long-term durability. The all-aluminum construction also improves heat dissipation, keeping the unit reliable under heavy-duty industrial operation.

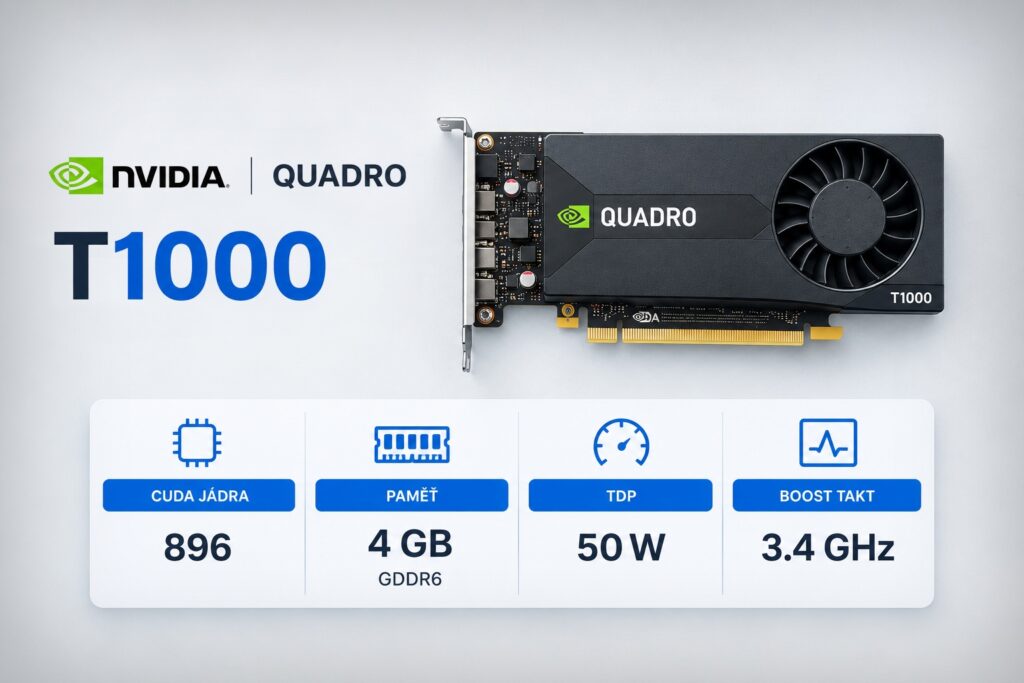

A dedicated NVIDIA Quadro T1000 GPU with 4 GB GDDR6 memory adds serious graphics power to the industrial form factor. It’s well suited for processing multiple industrial camera streams in parallel, as well as running AI and machine-vision workloads.
The device is available with a range of Intel® Core processors, from efficient low-power variants to high-core-count options with up to 24 cores. Whatever the workload – from lightweight monitoring to heavy-duty data processing – there’s a CPU option to match it.
A built-in PoE+ port (IEEE 802.3at) delivers up to 30 W directly over the Ethernet cable. It powers IP cameras and other PoE-enabled devices without a separate power supply or injector, simplifying cabling in the control cabinet.
Up to 64 GB of DDR5 RAM keeps demanding applications, multiple parallel processes and large datasets running smoothly, with headroom to grow as workloads increase.

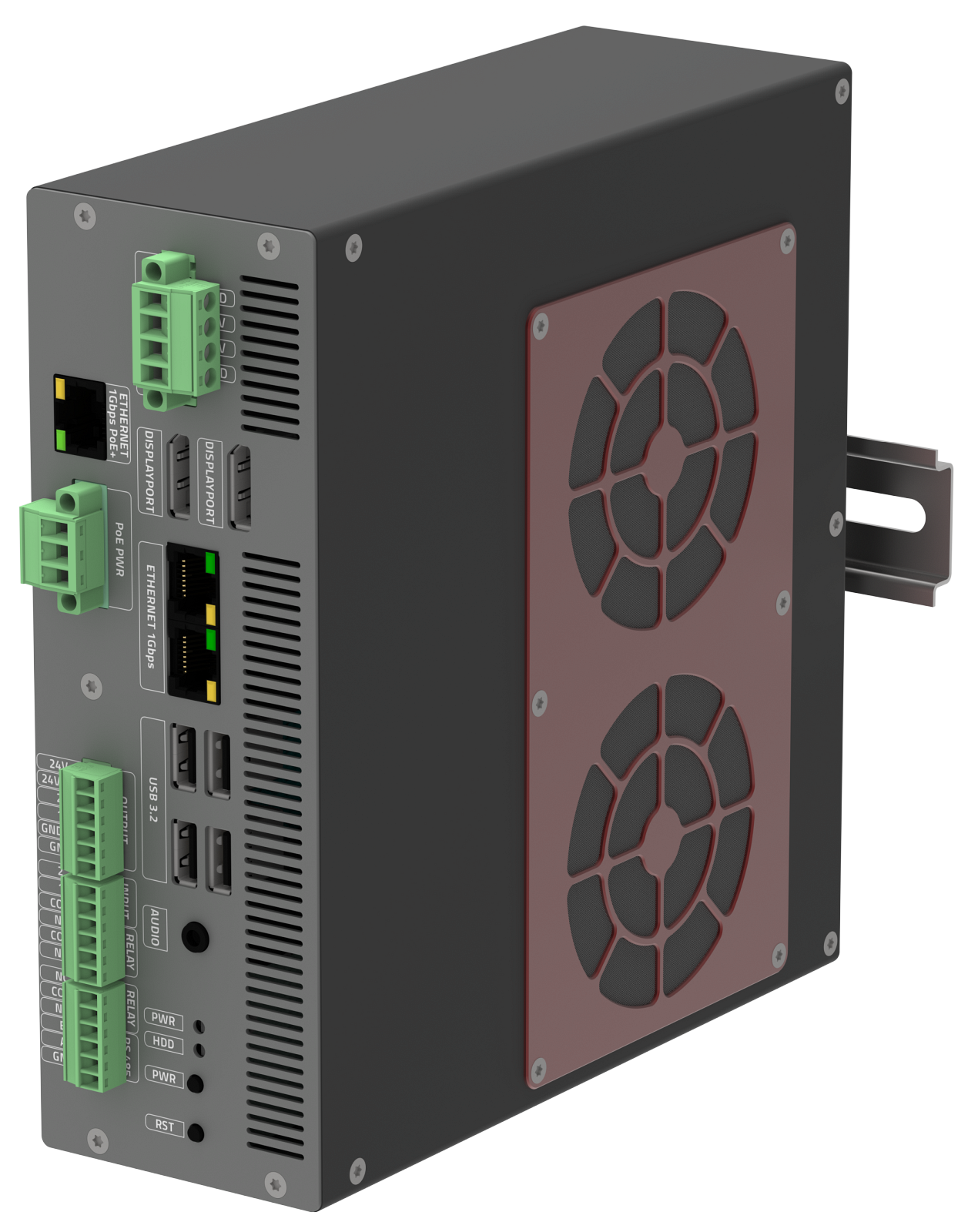

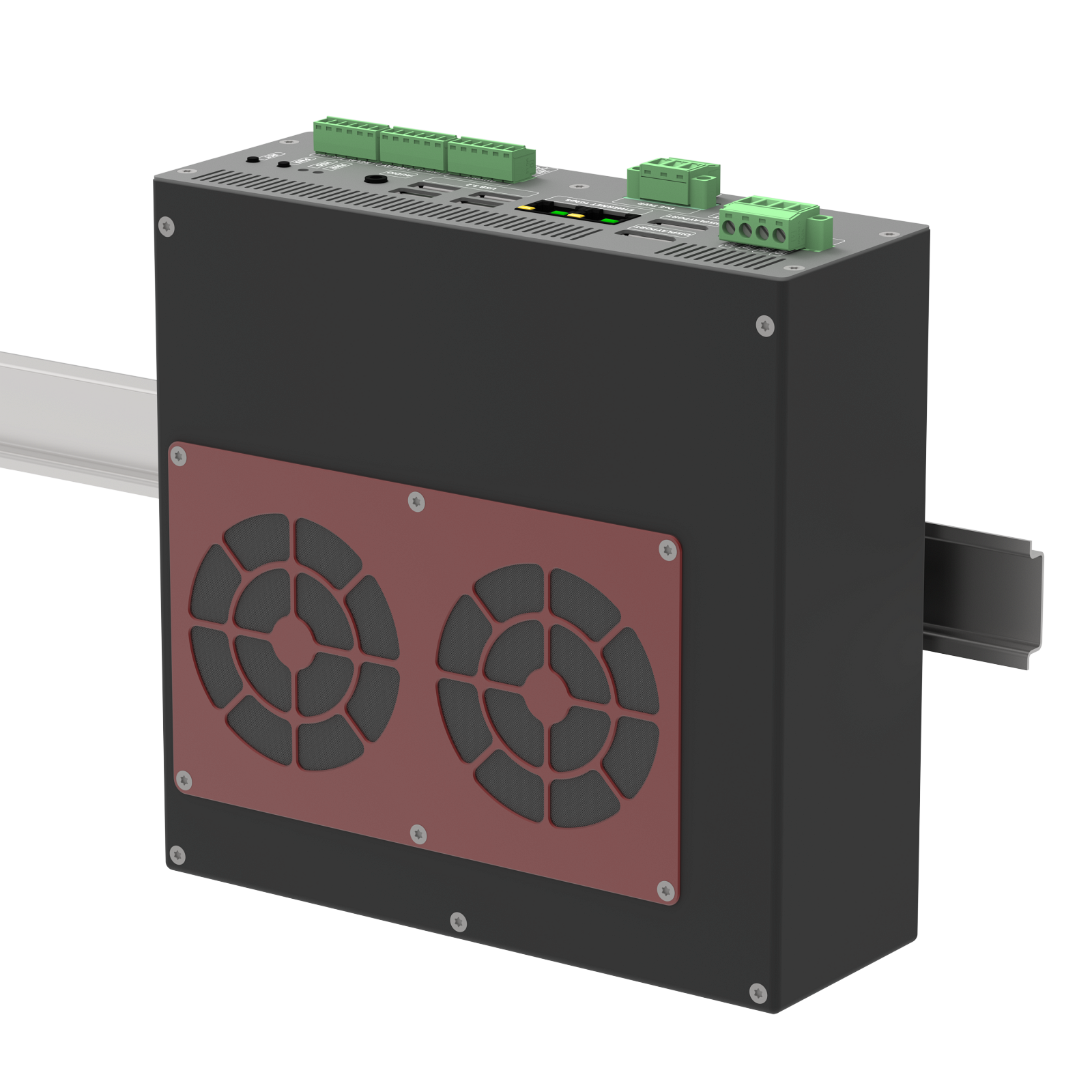

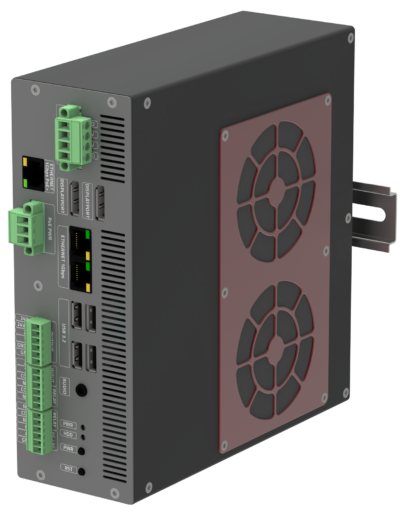

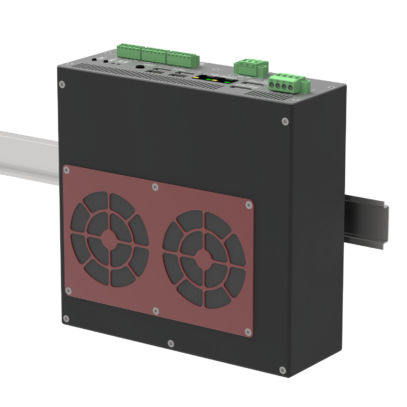

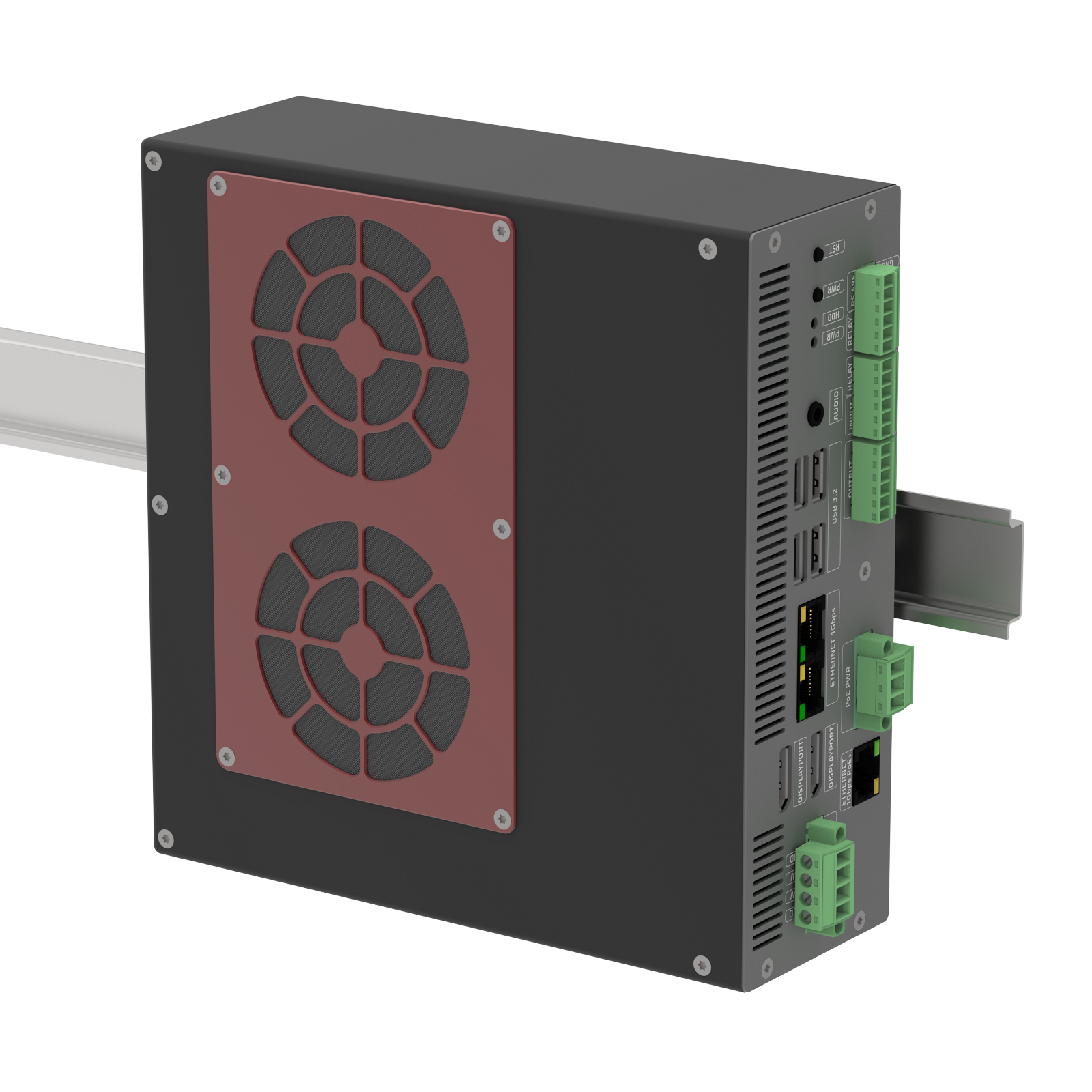

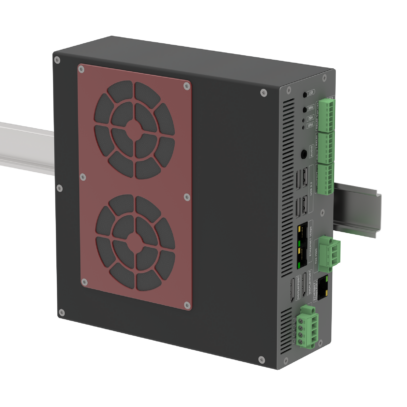

The compact aluminum housing clips directly onto a standard DIN rail, dropping straight into existing control cabinets without extra brackets or adapters — a fast, tool-free way to add powerful industrial computing right next to your other cabinet equipment.
The base configuration includes a wide range of ports, eliminating the need for external adapters.
In addition to standard PC interfaces, the Industrial PC supports I/O modules which are also available in our Panel PCs for expanding interfacing options with external systems.
Two standard module options are available, with custom solutions on request, subject to lead time and cost.

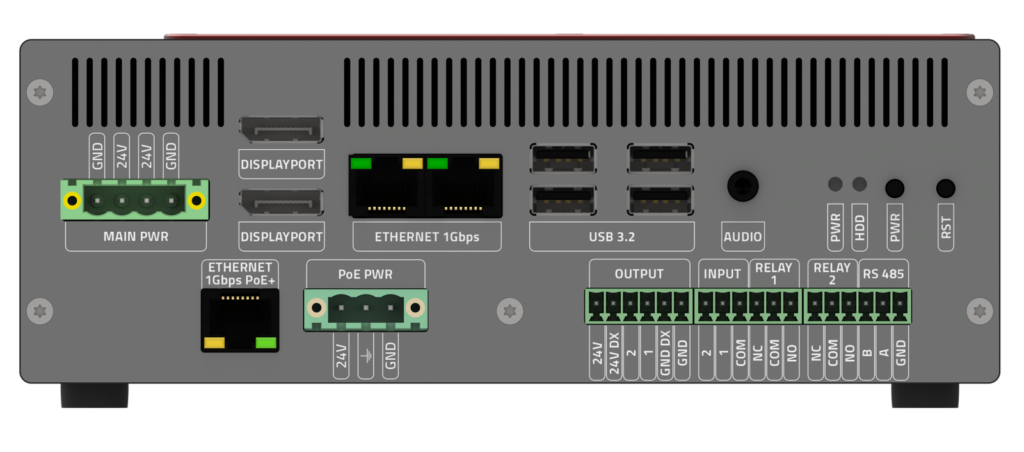

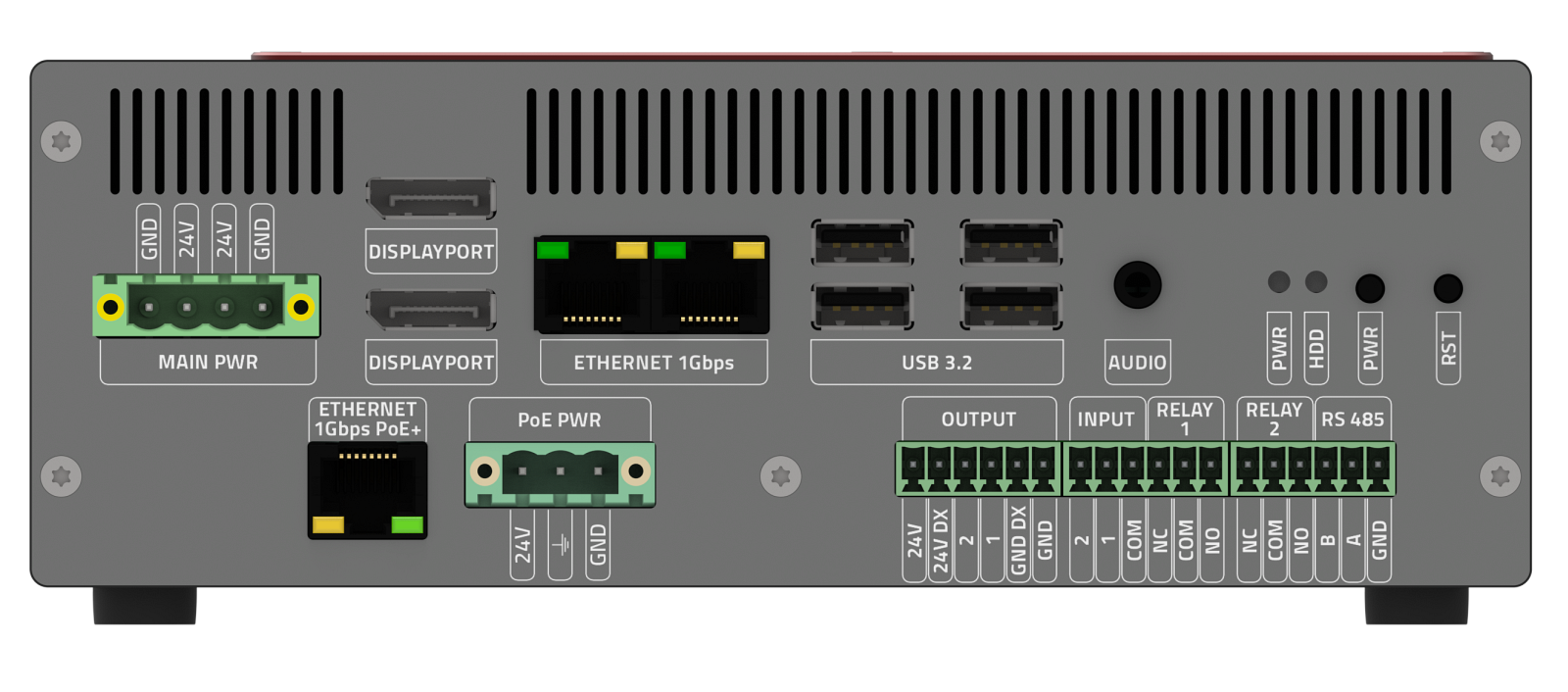

2× Digital Input, 24 V
2× Digital Output, 24 V / 150 mA
2× Relay, 0.3 A @ 125 VAC / 1 A @ 30 VDC
1× RS485
This digital I/O module is designed for direct control of industrial components. It combines the most commonly used digital inputs and outputs up to 24 V with relay outputs and an RS485 bus for advanced communication.
All connections use screw-type quick-release terminals, simplifying installation and eliminating the need for complex connectors.

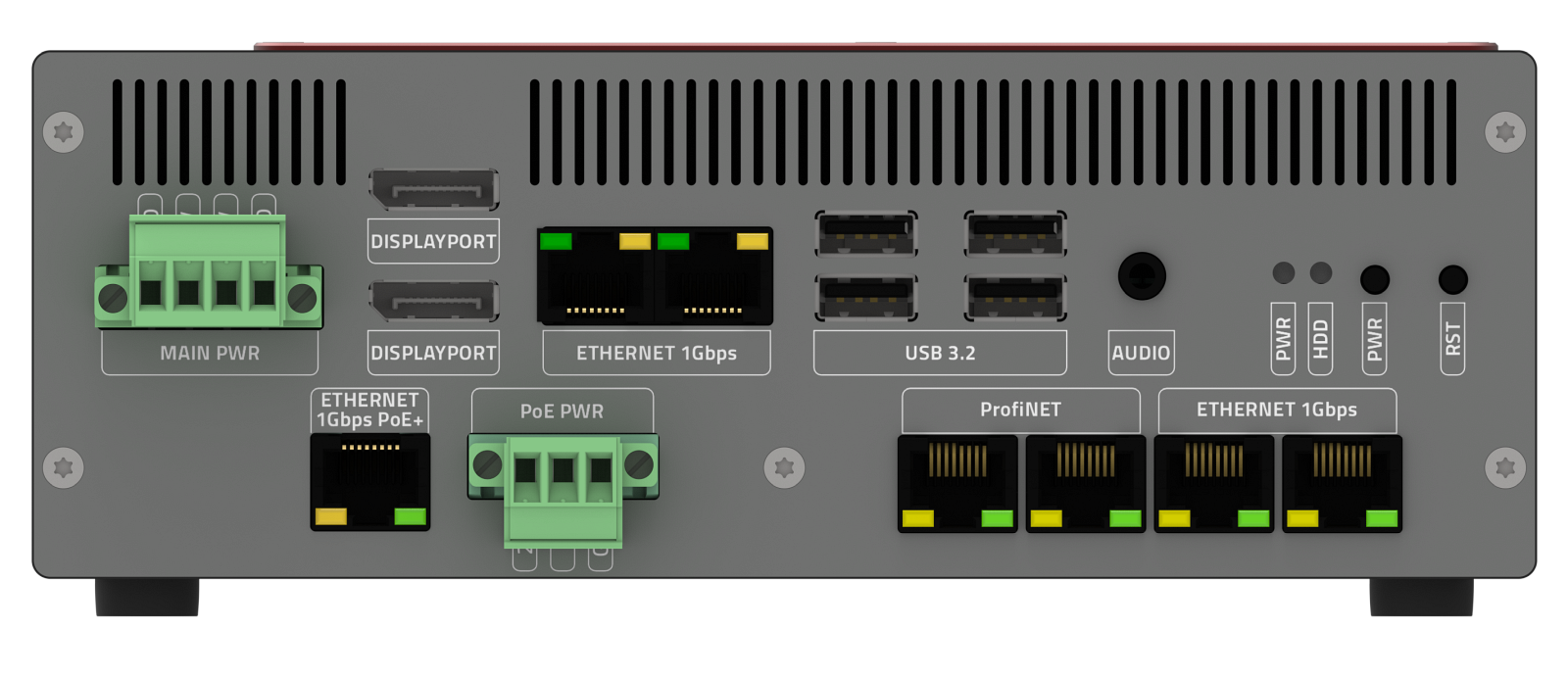

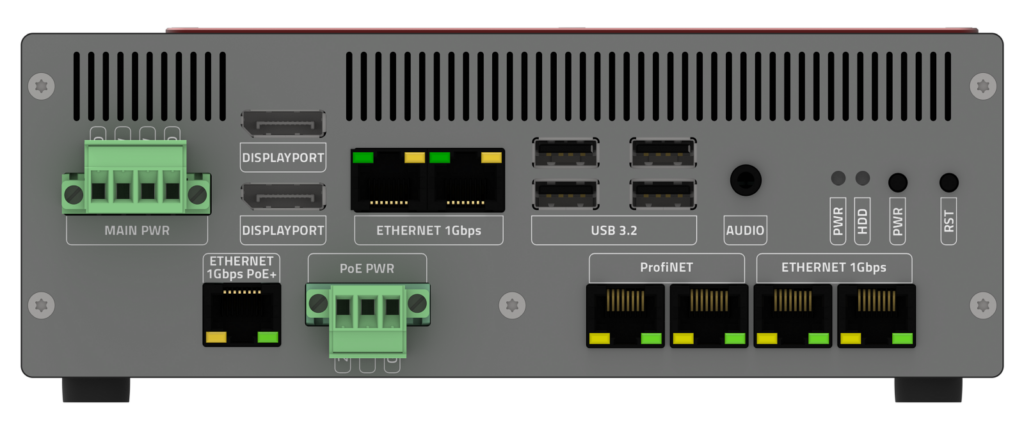

2× Gigabit Ethernet
2× ProfiNET
This high-speed communication module extends the connectivity with industrial devices. It supports both the ProfiNET standard and Ethernet TCP/IP communication.
The module features two dedicated RJ45 ports for ProfiNET and two dedicated RJ45 ports for Ethernet, ensuring clear separation of networks and reliable data exchange.
Intel Core i3-14100, 4 cores up to 4.7 GHz
16, 32 or 64 GB DDR5
NVIDIA Quadro T1000, 4 GB GDDR6
Active air cooling (integrated fans)
4× USB 3.2 Gen1
2× Gigabit Ethernet
1× PoE+ port, up to 30 W (802.3at)
2× DisplayPort
1× audio line-out
DC power connector, 19-24 VDC
Selectable I/O module
